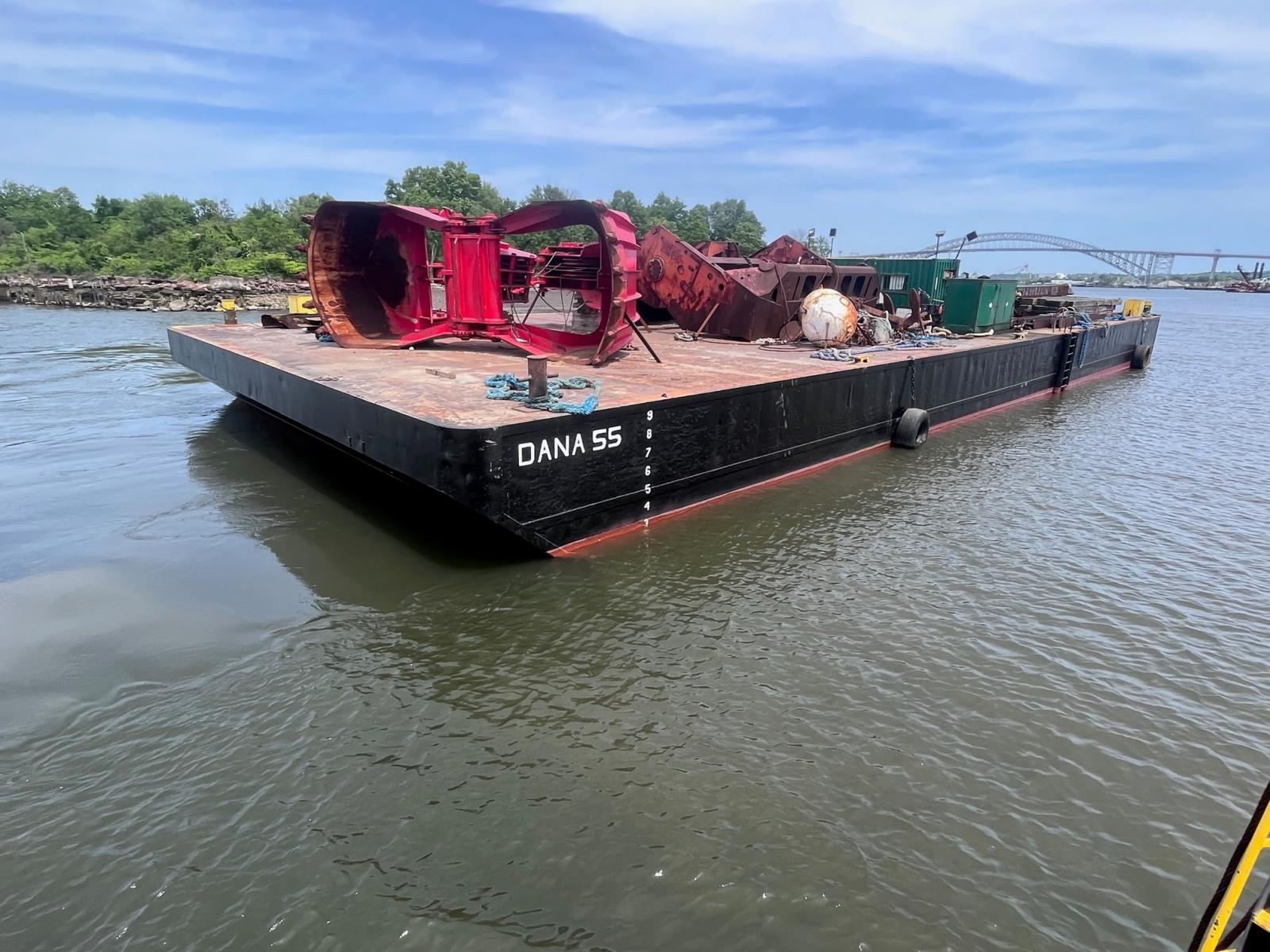

Dana 55

Print Specs Displacement Table Drawing

Type	Spud Barge
Class	Inland
Sterling #	09-118
Length	140'
Beam	55'
Depth	10'
Gross Tonage	646
Light Draft
Compartments	6
Bulk Heads	(1) Longitudinal; (3) Transverse
Spud Wells	(3) 22" Square
Spuds	(2) 18" x Approximately 60' Square
Capacity	1700 PSF
Other	All welded steel deck barge with flat deck and bottom. The transom is square cut with raked bottom plating at the bow. The sides, log and transom are straight and parallel.
