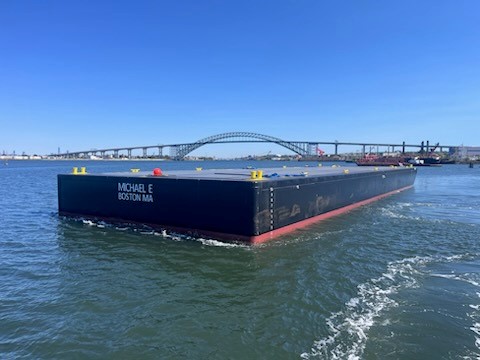

Michael E

Print Specs Displacement Table Drawing

Type	Spud Barge
Class	ABS All Oceans
Sterling #	09-343
Length	180'
Beam	60'
Depth	12'
Gross Tonage	1088
Light Draft	1.5'
Compartments	18
Bulk Heads	(2) Longitudinal; (5) Transverse
Spud Wells	(2) 38" Square
Spuds	(2) 36" Square x 80' Long
Capacity	2700 Tons
Other	3700#FT2 on AFT half of the deck, 2500#FT2 on FWD half of the deck, Barge is fitted with a rake bow and a square stern
